运维|devops|Jenkins|Jenkins Pipeline流程构建

基于 jenkins Version 2.541.3 实操案例

Jenkins Pipeline

基于 Groovy 的持续交付流水线代码（Pipeline as Code）

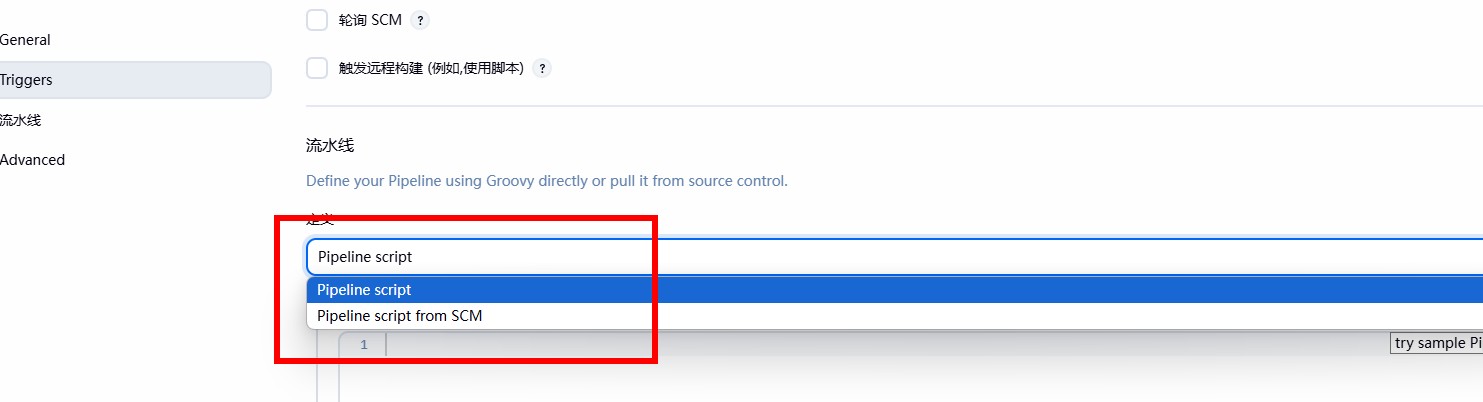

Pipeline script vs Pipeline script from SCM(实操)

Pipeline script

流水线代码直接粘贴在 Jenkins 任务页面文本框内，存储在 Jenkins 任务配置数据库中，不关联 Git 仓库

Pipeline script from SCM

流水线代码（Jenkinsfile）存放在代码仓库 (Git/SVN)，Jenkins 运行流水线时先拉取代码，读取仓库内的 Jenkinsfile 执行

Jenkinsfile 脚本内容的语法格式如下两种

Declarative Pipeline（声明式-实操）：语法严格、易读，适合绝大多数项目

pipeline {
    agent any
    stages {
        stage('构建') {
            steps {
                echo "hello"
            }
        }
    }
}

Scripted Pipeline（脚本式）：原生 Groovy，自由度高，适合复杂逻辑

node {
    stage('构建') {
        echo "hello"
    }
}

前置条件

git、ssh、jdk、maven 等配置

服务器端开启ssh登录

生成密钥

ssh-keygen -t rsa -b 4096

将公钥添加到本机的 authorized_keys

cat ~/.ssh/id_rsa.pub >> ~/.ssh/authorized_keys

配置 SSH 服务（/etc/ssh/sshd_config)

PubkeyAuthentication yes
PasswordAuthentication yes

重启 SSH 服务

sudo systemctl reload sshd

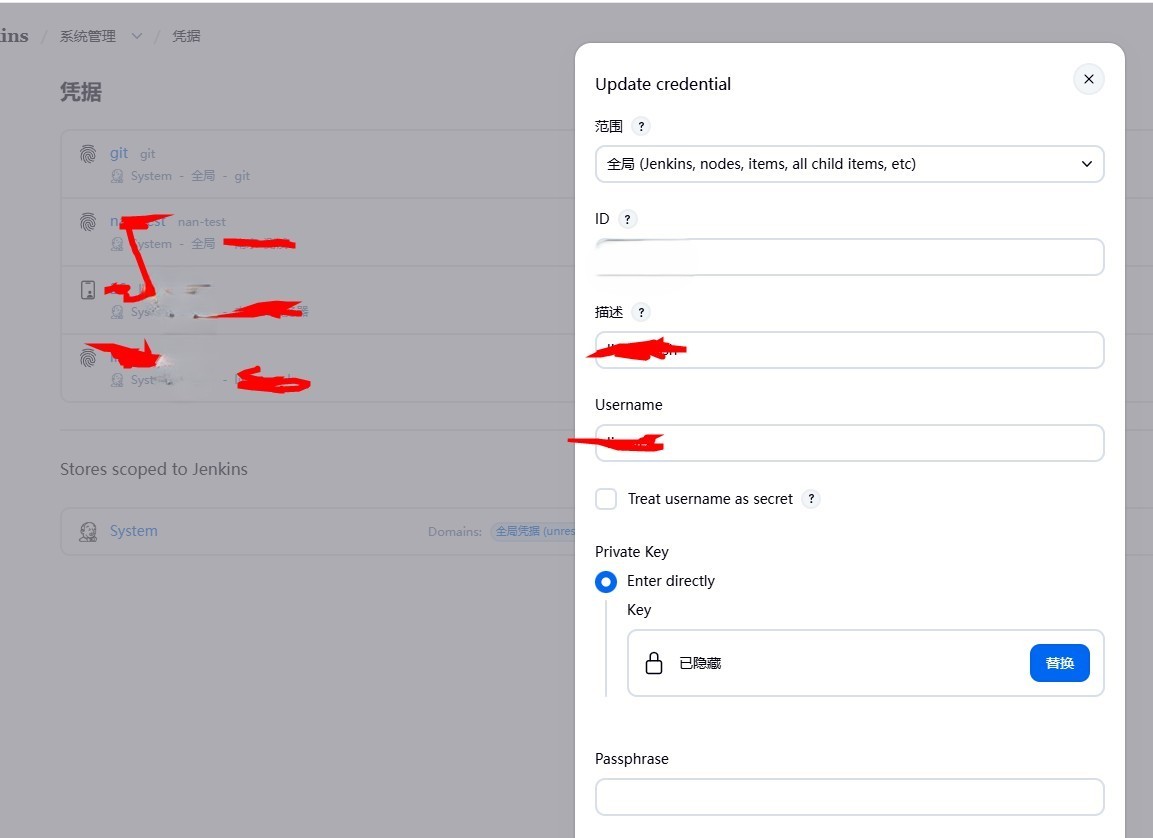

将私钥拷贝到Jenkins全局令牌凭证中

Jenkinsfile文件和脚本创建

Jenkinsfile位置放入项目pom同级别

位置参照

Core（仓库根目录｜父pom）
├─ pom.xml                聚合父工程
├─ common-core            公共依赖模块（无需Jenkinsfile）
│  └─ pom.xml
├─ Core.Api      业务子模块
│  ├─ pom.xml
│  └─ Jenkinsfile         ✅ 当前模块流水线文件

Groovy构建脚本(Jenkinsfile)

pipeline {
    agent any

    options {
        disableConcurrentBuilds()
        timeout(time: 20, unit: 'MINUTES')
        timestamps()
        buildDiscarder(logRotator(numToKeepStr: '10'))
    }

    parameters {
        booleanParam(
            name: 'AUTO_DEPLOY',
            defaultValue: false,
            description: '构建完成自动推送Jar并重启远程服务'
        )
    }

    environment {
        SERVICE_DIR = 'app'
        SERVICE_NAME = 'app'
        JAR_VERSION = '1.0.0-SNAPSHOT'
        JAR_FILE = "${SERVICE_NAME}-${JAR_VERSION}.jar"
        REMOTE_SUB_DIR = "${SERVICE_NAME}"
        REMOTE_FULL_DIR = "/usr/local/${REMOTE_SUB_DIR}"
        LOCAL_JAR_PATH = "${SERVICE_DIR}/target/${JAR_FILE}"
        JAVA_HOME = '/usr/local/jdk21'
        M2_HOME = '/usr/local/maven'
        // SSH 配置
        REMOTE_HOST = '192.168.0.66'
        REMOTE_USER = 'test'
        SSH_CREDENTIALS_ID = 'test'
    }

    stages {
        stage('1. 环境信息打印') {
            steps {
                echo "【构建信息】服务名：${env.SERVICE_NAME}｜Jar包：${env.JAR_FILE}"
                echo "本地路径：${env.LOCAL_JAR_PATH}"
                echo "远端目录：${env.REMOTE_FULL_DIR}"
            }
        }

        stage('2. Maven编译打包') {
            steps {
                sh '''
                    test -d ${JAVA_HOME} || { echo "❌ JAVA_HOME目录不存在"; exit 1; }
                    test -d ${M2_HOME} || { echo "❌ M2_HOME目录不存在"; exit 1; }
                    ${JAVA_HOME}/bin/java -version
                    ${M2_HOME}/bin/mvn -v
                    cd ${SERVICE_DIR}
                    ${M2_HOME}/bin/mvn clean package -DskipTests
                '''
            }
        }

        stage('3. 归档构建产物') {
            steps {
                archiveArtifacts artifacts: "${env.LOCAL_JAR_PATH}", fingerprint: true, onlyIfSuccessful: true
            }
        }

        stage('4. 远程发布部署') {
            when {
                expression { params.AUTO_DEPLOY }
            }
            steps {
                echo "开始推送Jar包并远程重启服务"

                withCredentials([sshUserPrivateKey(
                    credentialsId: "${env.SSH_CREDENTIALS_ID}",
                    keyFileVariable: 'SSH_KEY',
                    usernameVariable: 'SSH_USER'
                )]) {
                    sh """
                        set -e -x
                        # 传输 JAR
                        scp -i \$SSH_KEY -o StrictHostKeyChecking=no ${LOCAL_JAR_PATH} ${REMOTE_USER}@${REMOTE_HOST}:${REMOTE_FULL_DIR}/${JAR_FILE}

                        # 远程执行部署【修复pgrep匹配BUG】
                        ssh -i \$SSH_KEY -o StrictHostKeyChecking=no ${REMOTE_USER}@${REMOTE_HOST} << 'EOF'
                            export JAVA_HOME=/usr/local/jdk-21.0.11
                            SERVICE_NAME=${SERVICE_NAME}
                            REMOTE_FULL_DIR=${REMOTE_FULL_DIR}
                            JAR_FILE=${JAR_FILE}

                            mkdir -p \${REMOTE_FULL_DIR}
                            cd \${REMOTE_FULL_DIR}

                            # 根据服务名杀死进程，不再写死jar名称
                            pkill -f "\${SERVICE_NAME}" || true
                            sleep 1

                            # 后台启动服务
                            nohup \${JAVA_HOME}/bin/java -jar \${JAR_FILE} > app.log 2>&1 &
                            sleep 3

                            # 校验进程：匹配服务名称，不再匹配jar短文件名
                            if pgrep -f "\${SERVICE_NAME}" > /dev/null; then
                                echo "✅ 服务启动成功"
                            else
                                echo "❌ 服务启动失败，打印最近日志"
                                [ -f app.log ] && tail -15 app.log || echo "app.log 文件尚未生成"
                                exit 1
                            fi
EOF
                    """
                }

                echo "远程部署流程执行完毕"
            }
        }
    }

    post {
        always {
            echo "【Post钩子】流水线构建结束"
        }
        success {
            cleanWs()
            echo "🎉 流水线全部执行成功！"
        }
        failure {
            echo "💥 流水线执行失败，请查看日志排查问题！"
        }
    }
}

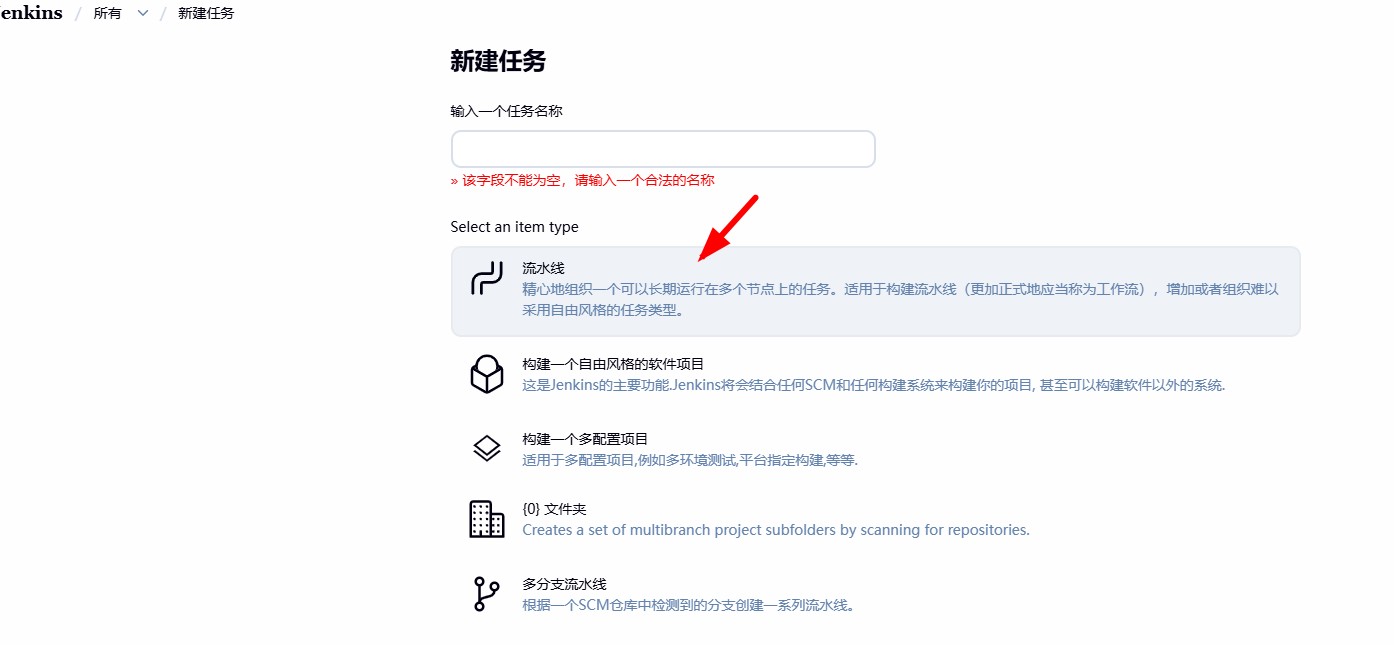

创建Pipeline任务

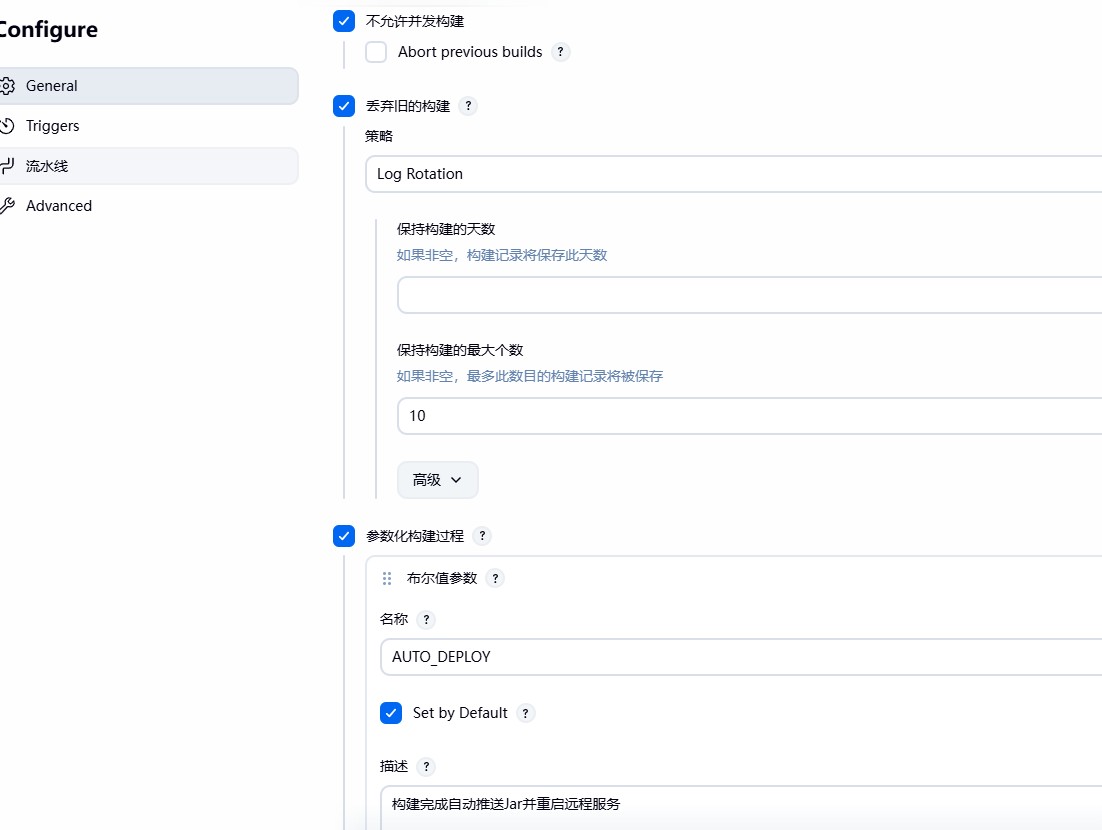

构建相关pipeline

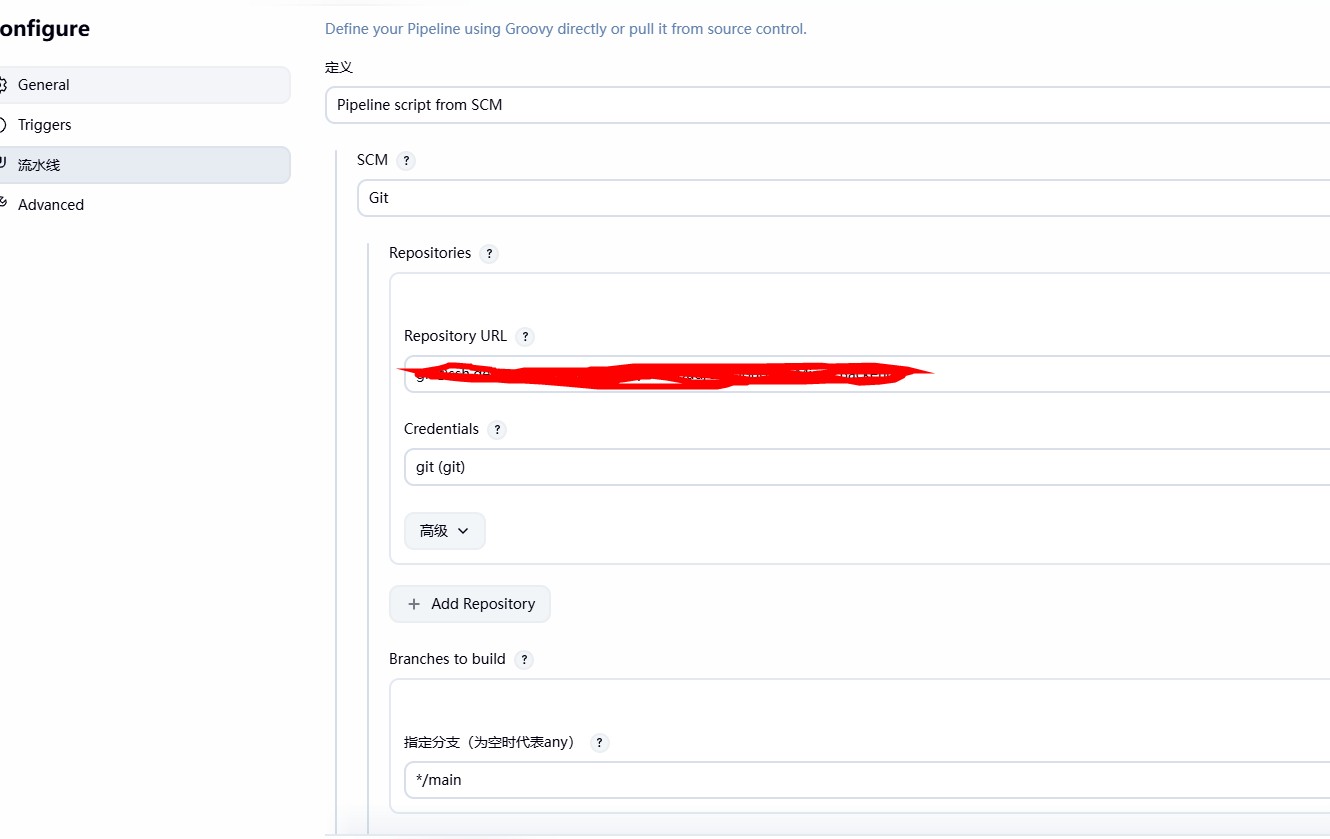

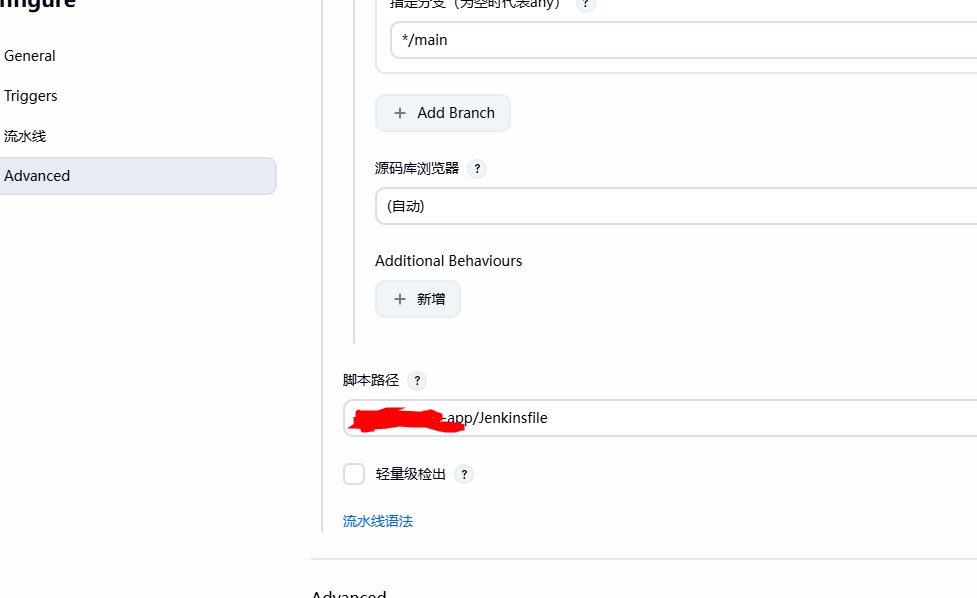

脚本指向路径

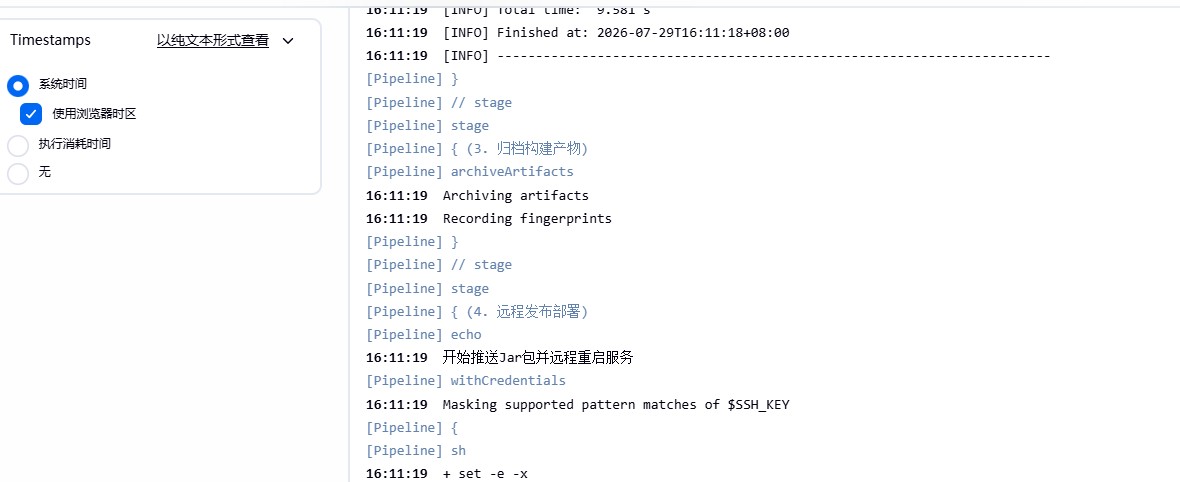

执行构建结果

优化脚本

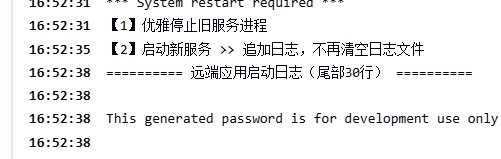

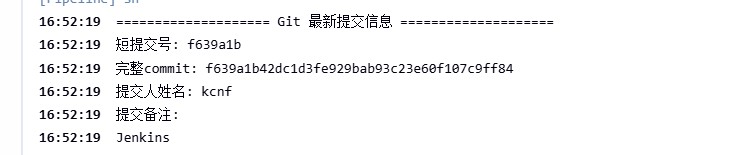

增加git 打印、和后台应用日志

pipeline {
    agent any

    options {
        disableConcurrentBuilds()
        timeout(time: 20, unit: 'MINUTES')
        timestamps()
        buildDiscarder(logRotator(numToKeepStr: '10'))
    }

    parameters {
        booleanParam(
            name: 'AUTO_DEPLOY',
            defaultValue: false,
            description: '构建完成自动推送Jar并重启远程服务'
        )
    }

    environment {
        SERVICE_DIR = 'app'
        SERVICE_NAME = 'app'
        JAR_VERSION = '1.0.0-SNAPSHOT'
        JAR_FILE = "${SERVICE_NAME}-${JAR_VERSION}.jar"
        REMOTE_SUB_DIR = "${SERVICE_NAME}"
        REMOTE_FULL_DIR = "/usr/local/${REMOTE_SUB_DIR}"
        LOCAL_JAR_PATH = "${SERVICE_DIR}/target/${JAR_FILE}"
        JAVA_HOME = '/usr/local/jdk21'
        M2_HOME = '/usr/local/maven'
        REMOTE_HOST = '192.168.0.66'
        REMOTE_USER = 'test'
        SSH_CREDENTIALS_ID = 'test'
    }

    stages {
        stage('1. 环境信息 & Git提交日志打印') {
            steps {
                sh '''#!/bin/bash
                    echo "==================== Git 最新提交信息 ===================="
                    echo "短提交号: $(git rev-parse --short HEAD)"
                    echo "完整commit: $(git rev-parse HEAD)"
                    echo "提交人姓名: $(git log -1 --pretty=%an)"
                    echo "提交备注:"
                    git log -1 --pretty=%B
                    echo "=========================================================="
                '''

                echo "【构建信息】服务名：${env.SERVICE_NAME}｜Jar包：${env.JAR_FILE}"
                echo "本地路径：${env.LOCAL_JAR_PATH}"
                echo "远端目录：${env.REMOTE_FULL_DIR}"
            }
        }

        stage('2. Maven编译打包') {
            steps {
                sh '''#!/bin/bash
                    test -d ${JAVA_HOME} || { echo "❌ JAVA_HOME目录不存在"; exit 1; }
                    test -d ${M2_HOME} || { echo "❌ M2_HOME目录不存在"; exit 1; }
                    ${JAVA_HOME}/bin/java -version
                    ${M2_HOME}/bin/mvn -v
                    cd ${SERVICE_DIR}
                    ${M2_HOME}/bin/mvn clean package -DskipTests
                '''
            }
        }

        stage('3. 归档构建产物') {
            steps {
                archiveArtifacts artifacts: "${env.LOCAL_JAR_PATH}", fingerprint: true, onlyIfSuccessful: true
            }
        }

        stage('4. 远程发布部署') {
            when {
                expression { params.AUTO_DEPLOY }
            }
            steps {
                echo "开始推送Jar包并远程重启服务"

                withCredentials([sshUserPrivateKey(
                    credentialsId: "${env.SSH_CREDENTIALS_ID}",
                    keyFileVariable: 'SSH_KEY',
                    usernameVariable: 'SSH_USER'
                )]) {
                    // ===== 使用三双引号 """ 允许Groovy解析Jenkins环境变量 =====
                    sh """#!/bin/bash
                        set -e -x
                        scp -i \$SSH_KEY -o StrictHostKeyChecking=no ${LOCAL_JAR_PATH} ${REMOTE_USER}@${REMOTE_HOST}:${REMOTE_FULL_DIR}/${JAR_FILE}

                        ssh -i \$SSH_KEY -o StrictHostKeyChecking=no ${REMOTE_USER}@${REMOTE_HOST} << EOF
                            SERVICE_NAME=${SERVICE_NAME}
                            REMOTE_FULL_DIR=${REMOTE_FULL_DIR}
                            JAR_FILE=${JAR_FILE}

                            mkdir -p \${REMOTE_FULL_DIR}
                            cd \${REMOTE_FULL_DIR}

                            echo "【1】优雅停止旧服务进程"
                            pgrep -f "java.*\${SERVICE_NAME}" | xargs kill -15 2>/dev/null || true
                            sleep 2
                            pgrep -f "java.*\${SERVICE_NAME}" | xargs kill -9 2>/dev/null || true
                            sleep 1

                            echo "【2】启动新服务 >> 追加日志，不再清空日志文件"
                            # 远端服务器JAVA路径【硬编码】，彻底避开变量冲突大坑
                            nohup /usr/local/jdk-21.0.11/bin/java -Dfile.encoding=UTF-8 -jar \${JAR_FILE} >> app.log 2>&1 &
                            sleep 3

                            echo "========== 远端应用启动日志（尾部30行） =========="
                            [ -f app.log ] && tail -30 app.log || echo "app.log 文件尚未生成"
                            echo "===================================================="

                            echo "【3】校验进程状态"
                            if pgrep -f "java.*\${SERVICE_NAME}" > /dev/null; then
                                echo "✅ 服务进程启动成功"
                            else
                                echo "❌ 服务启动失败！"
                                exit 1
                            fi
EOF
                    """
                }

                echo "远程部署流程执行完毕"
            }
        }
    }

    post {
        always {
            echo "【Post钩子】流水线构建结束"
        }
        success {
            cleanWs()
            echo "🎉 流水线全部执行成功！"
        }
        failure {
            echo "💥 流水线执行失败，请查看日志排查问题！"
        }
    }
}
