借助gitee仓库构建私有图床
架构和准备
- 创建gitee服务端仓库
- 创建gitee图床仓库
- 日常图片存储gitee仓库，通过git提交，保障本地电脑和云上备份双份
- 创建spring-boot服务端应用，实现预览图片路径为gitee图床
- 创建spring-boot客户端应用，实现远程服务端同步git pull命令
- 部署服务通过nginx域名代理
- 服务端部署
具体实现细节
仓库和源码地址
gitee 图片仓库[https://gitee.com/kcnf_open/wiki]
gitee 服务端仓库[https://gitee.com/kcnf_open/kcnf-wiki]
服务端
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
</dependencies>
yaml配置
#app
server:
port: 8086
servlet:
context-path: /
#spring
spring:
main:
allow-bean-definition-overriding: true
devtools:
restart:
enabled: false
profiles:
active: dev
web:
resources:
static-locations: file:${IMAGE_BASE_PATH:/data/wiki}/, classpath:/static/
启动类
package com.jysemel.kcnf;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.CommandLineRunner;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.ApplicationContext;
import org.springframework.scheduling.annotation.EnableScheduling;
/**
* @author jysemel
*/
@Slf4j
@EnableScheduling
@SpringBootApplication
public class WikiApplication implements CommandLineRunner {
@Autowired
private ApplicationContext context;
public static void main(String[] args) {
log.info("砍材农夫 开始启动........................................");
SpringApplication.run(WikiApplication.class, args);
log.info("砍材农夫 启动成功........................................");
}
@Override
public void run(String... args) throws Exception {
// 更简单的方法：直接输出配置值
String path = context.getEnvironment().getProperty("IMAGE_BASE_PATH");
log.info(">>> IMAGE_BASE_PATH {}", path);
log.info(">>> static-locations {}" , context.getEnvironment().getProperty("spring.web.resources.static-locations"));
}
}
同步git 云图
package com.jysemel.kcnf.controller;
import lombok.SneakyThrows;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.ApplicationContext;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;
import java.io.IOException;
@Slf4j
@RestController
public class GitController {
@Autowired
private ApplicationContext context;
@SneakyThrows
@GetMapping("/admin/pull")
public String pull() throws IOException {
String path = context.getEnvironment().getProperty("IMAGE_BASE_PATH");
log.info(">>> IMAGE_BASE_PATH {}", path);
Process process = Runtime.getRuntime().exec("git -C "+ path +" pull");
int code = process.waitFor();
return code == 0 ? "success" : "failed";
}
}

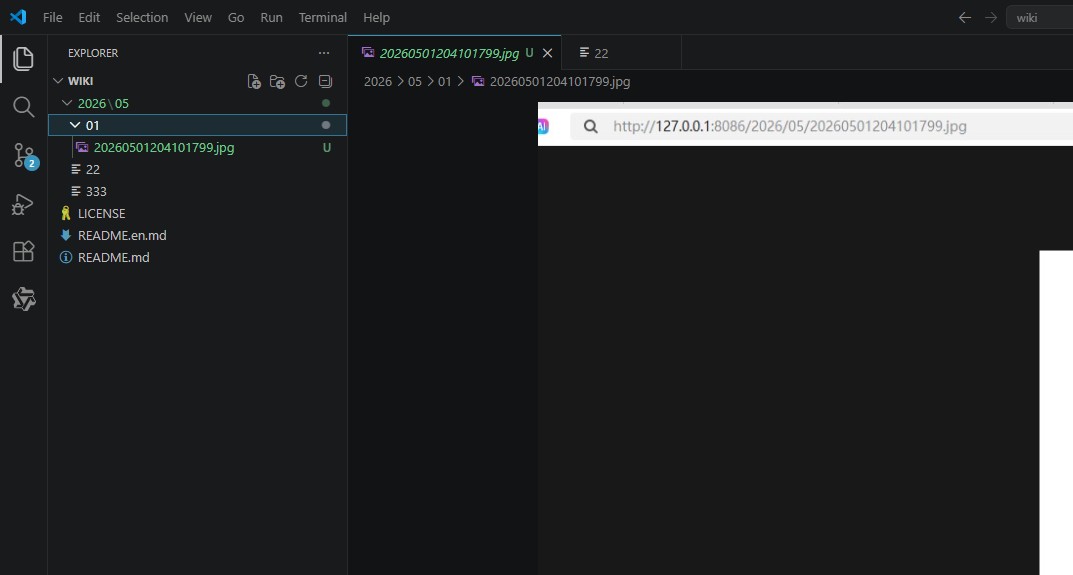

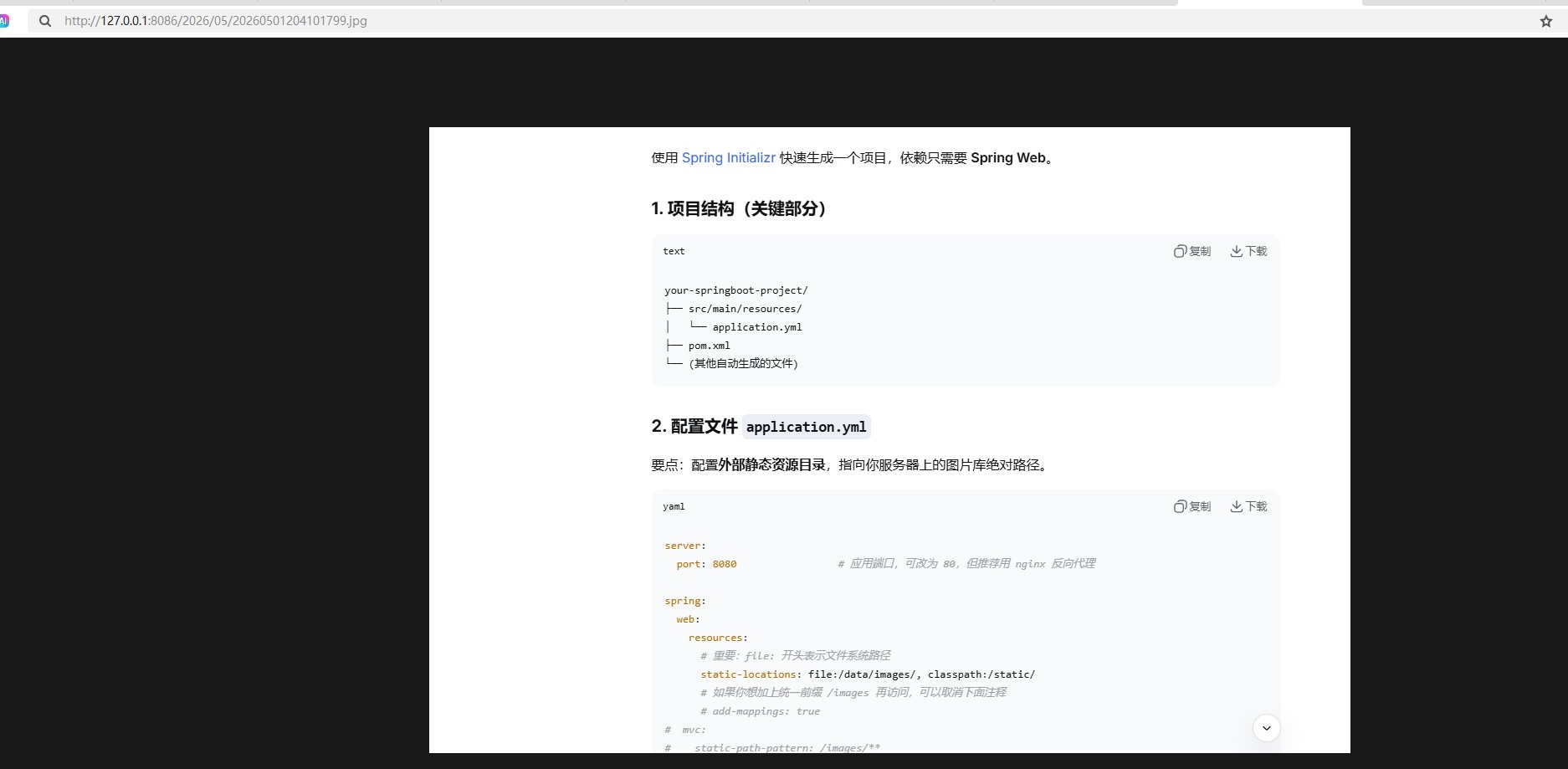

演示
